Externi DC Isolator Switch

SYDSE-32 Externus DC Isolator Switch, fabricante Sinarum fundato Zhejiang Soutya Novae Energy LLC, providet solitudo tuta DC 300-1500 V circuitus usque ad 32 A in photovoltaico, industria-repono et officinas EV-incurrens.
▶ Altiore gradu machinae tutelae IP66.
▶ Gyratorius contactus cum consilio sui purgationis, longam vitam servitii efficiens.
▶ MC4 connexiones wiring commodius faciunt.
▶ De applicata in DC parte systemata photovoltaica distributa

Mitte Inquisitionem

depictio producti

SYDSE-32 Externi DC Isolator Switch, suppeditante fabricante Sinarum fundato Zhejiang Soutya Nova Energy LLC, est 300-1500 V DC, 32 A non polarized in gyratorio switch featuring an 8 mm contactum gap et duplex intermissum rotating contactus celeri arcus extinction.it machinatum pro certo manuali solitudo in PV compaginis scriniorum, chordarum altilium et systematum industria-repono.

Proprium

Non verticitatem
IP66 praesidium
Arcus brevis
Flamma retardant Material
Gyratorius contactus cum consilio sui purgatio

Application missiones

1.PV ligatura greges

Inter chordas venientes et DC bus inclusis, isolator dat installers visibile, lockable confractus punctum pro tutum filum sustentationem vel celeri shutdown in culpa conditionibus.

2.Battery industria-repono quatit

In utroque botro crura positiva et negativa posita, technici permittit eculei singulae pugnae segregare totam ripam sine occlusione; tutus protocolla ignis PERMUTO adiuvans ad operandum et calidum.

3.Containerized ESS skids

Usus est ut manual DC disconnect in muro externo skid, IP66 habitationem sustinet lava-down et pulverem dum 8 mm contactu hiatus occurrat 1500 V exigentia solitaria NEC 690,35 et IEC 60364-5-53.

4.EV celeriter praecipientes repositoria

Consilium non-polarizatum, bidirectionale propositum tuto intermittit 800-1000 V DC link inter patina moduli et altilium sarcina, enabling subitis subsisto vel modulus tortor sine arcu damnum.

5.Rooftop commercial inverters

Sub inverso inaugurato directe, manubrium gyratorium inclusum esse potest off loco in cincinno-e / tag-e in inverter postea vel * arcu-culpa muneris, subtrahas necessitatem ad culmen marginem combiner . escendere arca.

Technical Parameter

Donec non.		SYDSC-32
Nulla voltage rated	Vdc	1500
Conventional calefactio current	A	32
Rated impetus sustinere voltage	Vdc	8000
Icw Rated breve tempus sustinere curent	A	780
Rated facultatem brevis-circuitu	A	1200
Contactus resistentia	mΩ	≤3
Nulla resistentia	mΩ	≥50
Maxime funem area (including thoracem laneum)
Una filum seu vexillum	mm²	4-10
Torque
OMNIBUS switch wiring terminatio M⁴screw constringendi torque		1.2-1.8
Nodum switch situ		12:00 On, 9:00 Off
Mechanica vita		10000
Vita electrica, frequentia operans		CCC temporibus / CC temporibus / hora
Vita electrica, frequentia operans		CCC temporibus / CC temporibus / hora
DC Polonorum		2、4
Contactus spatium (Polonorum procul)	mm	8
operating temperatus	℃	-40 to+85
Repono temperatus	℃	-40 to+85
Pollutio gradu		3
Overvoltage classis		Ⅲ
IP gradus cum IMPERVIUS arca		IP66 NW

Wiring parametri

Exemplar	String	Pole	(UtilizationCategory) DC-PV1DC-PV2IEC/EN60947GB/T14048.3
			300V		600V		800V		1000V		1500V
			PV1	PV2	PV1	PV2	PV1	PV2	PV1	PV2	PV1	PV2
SYDSE-32/2/32	1	2	32	32	32	32	32	16	16	9	13	9
SYDSE-32/4/32	2	4	32	32	32	32	32	16	16	9	13	9
SYDSE-32/4S/32	1	4	32	32	32	32	32	32	32	32	32	32
SYDSE-32/4B/32	1	4	32	32	32	32	32	32	32	32	32	32
SYDSE-32/4T/32	1	4	32	32	32	32	32	32	32	32	32	32

Wirng tabula

External DC Isolator Switch

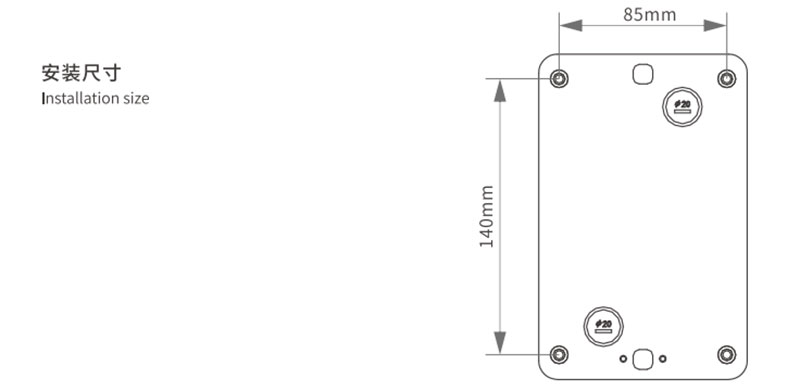

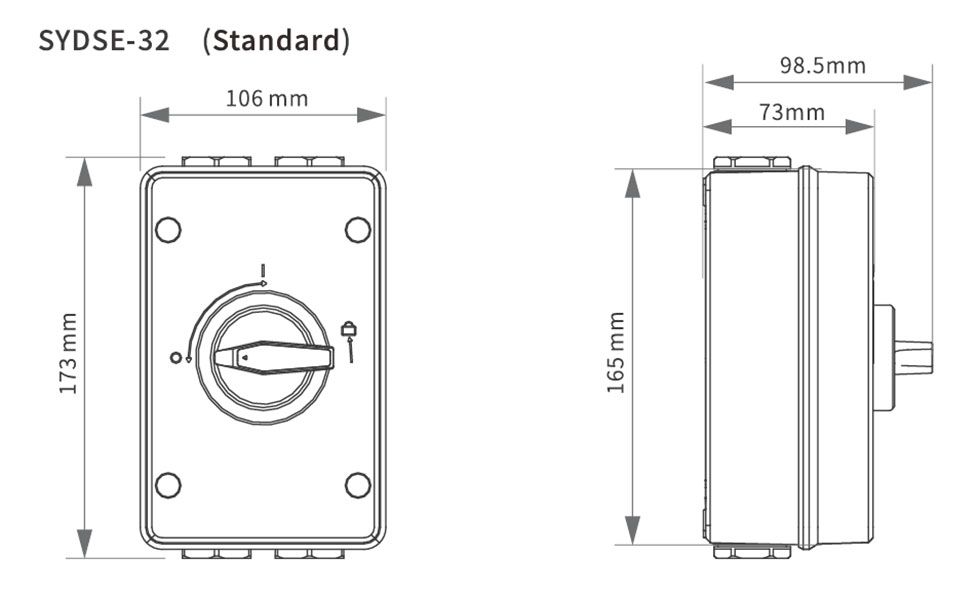

Aspectus et instruitur Dimensiones

External DC Isolator Switch
