DC Drawout-Type Isolator Switch

The SYDSC-32 DC Drawout-Type Isolator Switch, a China-substructio fabrica Zhejiang Soutya Nova Energy LLC, 1 500 V DC, 32 Commutandi facultatem cum 1 200 Brevi circuitionis probationem aestimationem faciunt ad pixides componendi et DC systemata distribuendi.
▶ Compacta structura et consilio modulari. Singuli circuii independenter ab strato separato dispositi, tutius procurant.
▶ Geminus-contactus in gyratorio nexu cum consilio sui purgationis, quae producti spatium pertendit.
▶ Tunnel-style wiring offerens flexibilitatem et commodum.
▶ Aptabilitas environmental fortis, potens operandi certo in temperatura range of -40 ad 85 °C.
▶ applicata in pixides compositionis photovoltaicae et systemata eget-voltaica connexis.

Mitte Inquisitionem

depictio producti

SYDSC-32 DC Drawout-Type Isolator Switch, emissa a fabricante Sinis-substructio Zhejiang Soutya Nova Energy LLC, est 1500 V DC, 32 Gyratorius isolator featuring geminus-confractus, contactus rotating qui invigilat extinctionem arcum celeri et excelsus commendatio. Cum MCC brevis circuitus faciunt probationem rating et VIII " mm hiatus contactus, destinatur tutus ambitus solitarii in compositione solaris pixides, chordae pugnae, et systemata industria repono.

Proprium

Geminus-contactus in gyratorio nexu
IP66 praesidium
Non verticitatem
Arcus brevis
Flamma retardant Material

Application missiones

1.PV Combiner Pyxidas

Inter chordas ascendentes et inversos, manubrium gyrum simul conductores positivum et negativum adimit; in duplici-confractus contactus provide 1500 V DC arcum liberum solitudo et installers dant confractus visibiles requiritur ad victum tutum.

2.Battery Energy Storage DC Panels

Installed in glomerorum busbarum, isolator interpellare potest altilium latus dc uno motu rapido; ad MCC breve spatium facere-probationem rating sustinet contra culpam excursus in subitis shutdowns.

3.Fast-incurrentes sublicis

Intus 800 V phialas velocis, versio 4-polis duas independentes separat altilium feeds. Consilium non-polarium bidirectionale sustinet praecipiens/officium, dum clausura IP66 efficit longum tempus velit commendatio.

4.Commercial & Utilitas-Scale Inverter DC Sides

Cum invertor servitio vel reposito indiget, SYDSC-32 clarum dat punctum confractus, arcens damnum terminalibus arcens, et operatur ab -40 °C to +85 °C pro solitudinibus vel plantis altae altitudinis.

5.Containerized PRAECLUSIO Sub-Unitates

Usus est sicut botrus-gradus sustentationem transibit simul cum fuses vel praevaricatores; creat duos scaena absque ratione, fuse plus isolator, continentem eu scope and improving altiore system disponibilitate.

Technical Parameter

Donec non.		SYDSC-32
Nulla voltage rated	Vdc	1500
Conventional calefactio current	A	32
Rated impetus sustinere voltage	Vdc	8000
Icw Rated breve tempus sustinere current	A	780
Rated facultatem brevis-circuitu	A	1200
Contactus resistentia	mΩ	≤3
Nulla resistentia	mΩ	≥50
Maxime funem area (including thoracem laneum)
Una filum seu vexillum	mm²	4-10
Torque
Terminatio M4 stupra constringendi	Nm	1.2-1.8
Switching Torque	Nm	12:00 On, 9:00 Off
Nodum switch situ	Nm	12:00 On, 9:00 Off
Mechanica vita		10000
Vita electrica, frequentia operans		CCC temporibus / CC temporibus / hora
Vita electrica, frequentia operans		CCC temporibus / CC temporibus / hora
DC Polonorum		2、4
Contactus spatium (Polonorum procul)	mm	8
operating temperatus	℃	-40 to+85
Repono temperatus	℃	-40 to+85
Pollutio gradu		3
Overvoltage classis		Ⅲ
IP gradus cum IMPERVIUS arca		IP66

Wiring parametri

Exemplar	String	Pole	(UtilizationCategory) DC-PV1DC-PV2IEC/EN60947GB/T14048.
			300V		600V		800V		1000V		1500V
			PV1	PV2	PV1	PV2	PV1	PV2	PV1	PV2	PV1	PV2
SYSSC-32/2/32	1	2	32	32	32	32	32	16	16	10	10	8
SYSSC-32/4/32	2	4	32	32	32	32	32	16	16	10	10	8
SYSSC-32/4S/32	1	4	32	32	32	32	32	32	32	32	32	32
SYSSC-32/4B/32	1	4	32	32	32	32	32	32	32	32	32	32
SYDSC-32/4T/32	1	4	32	32	32	32	32	32	32	32	32	32

Wiring tabula

DC Drawout-Type Isolator Switch

Derating curva

DC Drawout-Type Isolator Switch

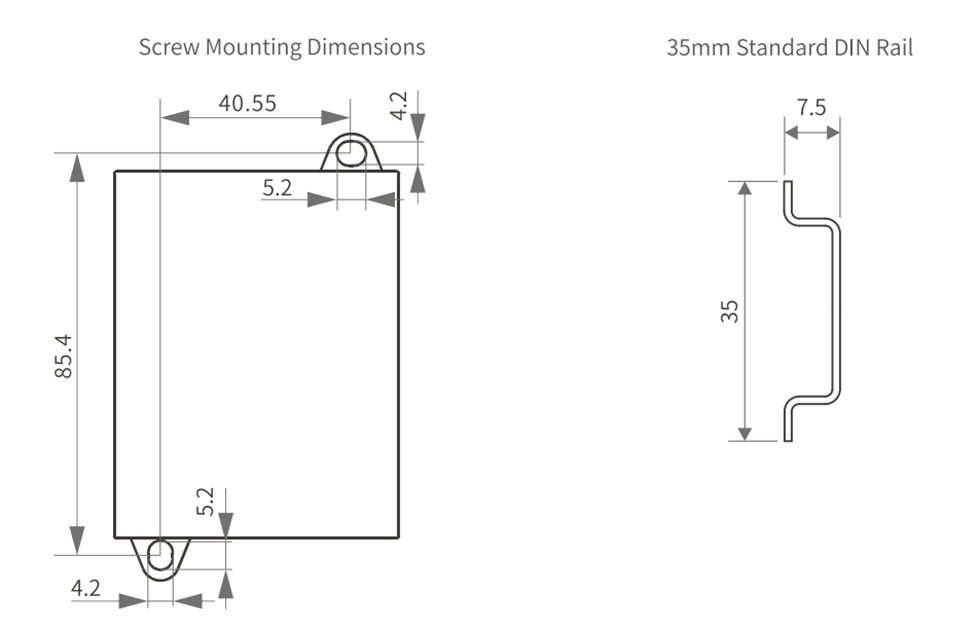

Aspectus et instruitur Dimensiones

DC Drawout-Type Isolator Switch
