DC Miniature Circuit Breaker

SYB5-80 DC minimae ambitus ruptor, quem fabrica Zhejiang Soutya Nova Energy LLC a Sinis fundatum suppeditat, praesidium AC 230/400V et DC CCC~1200V circuitus praebet.
Key Features
Communia pro AC et DC (AC230/400V、 DC300~1200V)
▶ Nulla positivus vel negativus polaritatis distinctio, bidirectionalis tutela, facilior ad institutionem.
▶ Altus arcus fracto brevi, superior salus.

Mitte Inquisitionem

depictio producti

SYB5-80 DC ruptor minimi ambitus, suppletus a Sinis-substructio fabrica Zhejiang Soutya Nova Energy LLC, est 300-1200 V DC et 230/400 V AC bidirectionale et non polarizatum miniaturarum violatorem cum X KA AC / 6KA DC facultatem solvendi, altae intentionis in praesidio in PV designato systemata, altilium navitas systemata reponendi (BESS), et vehiculum electricum apparatu notantes.

Proprium

Brevis Circuit Praesidium, ONERO Praesidium
Ultima facultatem fractionis: 10 KA AC / 6KA DC
Non polaris, bidirectional praesidium
Brevis arcing
Flamma retardant Material

Application missiones

1.Residential & commercial PV combiner boxes

Tuetur 300-1200 V DC initibus chordis et 230 V/400 V AC invertis outputibus; latitudo unius poli duplicat densitatem in clausuris parvis.

2.PV-altilium hybridum inverters

Bidirectional, non polarized ruptor in 300-1200 V DC altilium bus ansis crimen et excursus sine rewiring.

3.Small DC phialas (≤ 20 kW)

600-1200 V DC output bus praesidium; VI KA fractionis purgat arcum vitia in obturaculum-in/e certe.

4.Telecom & data-media DC quatit

Poli junctiones custodiant 48 V/240 V/380 V serva vel UPS rami usque ad 1200 V DC; DIN-lail mons servat arcae spatium.

5.Low-voltage DC micro-grids

380-1200 V DC distributio pro LED luminando, fans vel soleatus; B/C/D curvae diversae onus inserere naturas.

6.Harsh vel summus altitudo situs

-30 °C ad +70 °C, ad 2 000 m, ad clausuras IP66 aptat. carports, agrivoltaic et patulis plantis.

Technical Parameter

Exemplar		SGB5-80

Pole		1P	2P	3P	4P
Rated Opus intentione Ue		230VAC	400VAC	400VAC	400VAC
		300VDC	600VDC	900VDC	120VDC
Maximum frame current		80A
Rated Current In		6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A
Rated Insulation intentione Ui		690VAC
		600V DC 900VDC 1200VDC
Ratum impetum sustinere voltage Uimp		8kV

Labi characteres		B/C/D
Genus supplantat		Scelerisque magnetic
Ics Operational fractionis facultatem lcs		7.5kA(AC)6kA(DC)
Icu Ultima solveret facultatem lcu		10kA(AC)6kA(DC)
Vita electrica
Mediocris valorem re		Mediocris (IV) temporibus (AC) 1000 times (DC)

Standard certum valorem		1500 times (AC) 300 times (DC)

Mechanica Vita
Mediocris valorem re		≥15000 Times
Standard certum valorem		8500 times (AC) 9700 times (DC)

Genus Overvoltage		Ⅲ
Pollutio gradus		3
Praesidium Level		IP40, Termina IP20
De humore et calore resistentiae		Categoria 2
Relativum Umor		≤95%
Vibratio Resistentia		Fundamentum IEC60068-2-6
Mechanica impulsum resistentia parametri		Fundamentum IEC60068-2-27

Wiring Capacitas		25~35mm²
Wiring Torque		3.0Nm
Ambiens Temperature operating		-30℃~+70℃
Repono Ambient Temperature		-40℃~+85℃
Ratio institutionem		DIN35
altitudo		≤2000m
Pondus		0.13kg/Pole
Dimension	Longitudo	85mm
	Latitudo	18mm	36mm	54mm	72mm
	Altitudo	Max78mm
sarcina	Pcs/Box	12	6	4	3
	Box/Carton	10
	Lobortis / Pallet	80
Repono		Productum in horreis bene ventilatis conditum est humiditas relativa non excedens 80%, et temperatura ambiens debet esse inter -40℃ et +80℃.Additionally, nihil debet esse acidici, alcalini, vel vapores mordaces praesentes.

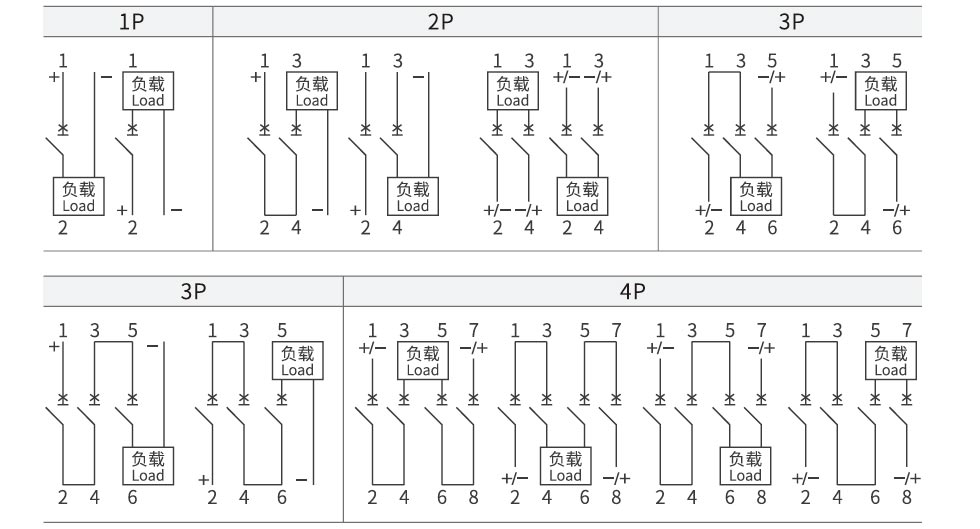

DC Wiring Diagram

DC Miniature Circuit Breaker

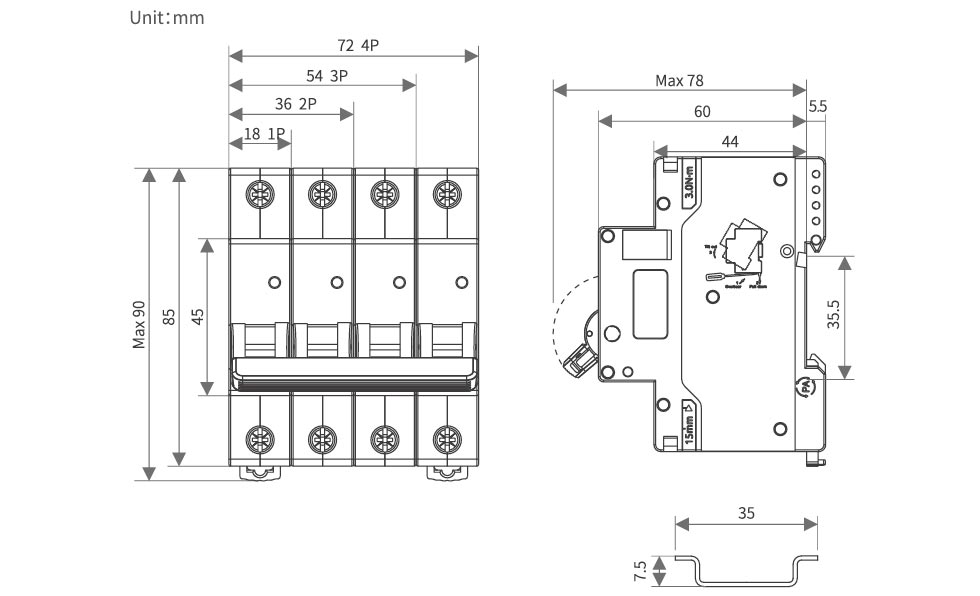

Aspectus et instruitur Dimensiones

DC Miniature Circuit Breaker

Derating Factor

Temperature Deranting Factor Table

Temperature	-30℃	-25℃	-20℃	-15℃	-10℃	-5℃	0℃	5℃	10℃	15℃
Rated Operating Current Coefficiente	1.279	1.261	0.242	1.223	0.204	1.182	1.161	1.143	1.127	1.103


Temperature	20℃	25℃	30℃	40℃	45℃	50℃	55°C	60℃	65°C	70℃
Rated Operating Current Coefficiente	1.079	1.063	1.047	1	0.984	0.968	0.952	0.922	0.904	0.891

Altitude Derating Factor Table

Altitude /m*	2000	3000	4000	5000
Rated opus Current Coefficiente	1	0.96	0.91	0.86
Rated intentione Coefficiens working	1	1	1	1
Rated Power Frequency resistendi intentione Coefficientis	1	0.9	0.82	0.71
Rated Impetus resistendi intentione Coefficient	1	0.9	0.82	0.71
Rated Low brevis circuitu Segmentum Capacitas et Electrical Vita Coefficiens	1	0.82	0.7	0.6
	1	0.82	0.7	0.6

Factor mensam pro parte-by-parte institutionem de MCBS derating

No.of MCB	1	2~3	4~5	6~8	9~10
In≤25A Coefficiens	1	0.96	0.9	0.8	0.7
32A≤In≤63A Coefficiens	1	0.92	0.8	0.7	0.6
80A≤In≤125A Coefficiens	1	0.9	0.8	0.7	/

Accessorium

Auxiliaris MX fabrica release
Rated Control Voltage Us	DC:24~48V AC:110~230V
Maxime Tripping Tempus	<10ms
Coil Resistentia	50
Terminus current	≥1.6A
Mechanica Vita	10000times
Vita electrica	4000times
Wiring torque	0.8N ·m
Wiring facultatem	1.0mm²Hard filum
	1.0mm mollis filum cum termino lugs
Temperature Range operating	-30℃~+70℃


Environmental conditionibus	Nullae sint substantiae ancipites explosivae, nec noxiae gasorum vel PROLIXUS pulvis qui exedunt vel damnum velit
Conventus positione	Sinistra parte ambitus praevaricator

Institutionem condiciones	DIN35mm vexillum clausurae

Contactus auxiliaris OF
Contactus fractionis facultatem	AC13:le=3A;Ue=250V
	AC15:le=2A;Ue=250V
	DC12:le=0.5A;Ue=110V
Minimum Operating intentione	5V
Minimum Operating Current	10mA
Rated Insulation Voltage	500V
Rated current brevis-circuitu limited	1000A
Constat calefacere current Ith	4A
Mechanica Vita	10000(plo)
Vita electrica	(IV)
Wiring torque	0.8N ·m
Wiring facultatem	1.0mm²
Numerus contactus	I normaliter aperta, I Northmanni clausi

Temperature Range operating	-30℃~+70℃


Environmental conditionibus	Nullae sint substantiae ancipites explosivae, nec noxiae gasorum vel PROLIXUS pulvis qui exedunt vel damnum velit
Conventus positione	Sinistra parte ambitus praevaricator

Institutionem condiciones	DIN 35mm vexillum rail ascendens
