DC 1500V Fuse Holder

SYF5-50P DC 1500V Fuse possessor suppeditavit Sinarum fabricam Zhejiang Soutya Novae Energy LLC, supra-currentis tutelae fabricae dedicatum est, vulgo in pixidis compaginatorum majorum tectorum mercatorum in chordis compositarum, agriculturae-conservationis vel mediae scalae PV plantarum inclusarum 30-50 kW et supra aestimatarum.
Key Features
Luce indicium, fuse filum statum plane cognosce.
Manubrium aperi, sursum trahi potest, filum fusum facilius reponens.
Rivet plus ultrasonic glutino solidiore, wiring non scinditur.
Applicatio in PV coniunctarum capsa.

Mitte Inquisitionem

depictio producti

SYF5-50P DC 1500V Fuse Holder, 50 supplere Sinis manufacturer Zhejiang Soutya New Energy LLC - est a tabulis montem praesidium unitatis constructum UV repugnans polycarbonate habitationem et IP65-aestimavit obsignationem pro diuturna operatione velit. The possessor comas a 10 38 mm gPV elementum fuse (2.2 × 13.2 cm altiore) et liberat 25 kA facultatem culpae alvi fractionis visibilis-confractus indicium et tuendae salutis, et officinas wired affirmativa, negativa et PE terminationes in tuto ponunt stabilitatem continuum. Machinatum for single- vel multi-nervum PV sub-ordinat, essentialem super-currentem praebet solitudo et aequipotentialis compages.

Technical Parameter

Exemplar	SYF5-50P
Numerus polorum	1P
Secundum vexillum	IEC60269
Rated voltage Ue V DC operans	1500V DC
Rated current in A	2-50A
KA facultatem fractionis	20kA/25kA
Praesidium campester	IP20
Wiring mm²	1-16mm²
Operans temperatus range	-50℃~+90℃
altitudo	≤2000m
Relativum humiditas	+20℃,≤90%
	+30℃,≤80%
	+40℃,≤70%
Installation Opera	Non significantes tremor et inpulsa
Institutionem Categoriae	Classis III

Application missiones

1.Utility-scale P. combiner boxes

1 D v dc chordis 182/210 mm modulorum usque ad L A; 10.3 × 85 mm fuse nexus permittit 28-40 A per filum, secans numerum loculorum in 2.5 MW cuneos.

2.Large commercial / industriae tectorum ≥ 30 kW

Tres-phase 50 kW-110 kW inverters cum 1 300-1 500 V MPPT beneficium ex 25 kA capacitatem fractionis et 1 mm interstitium contactuum pro certa arcu extinctionis.

3.Containerized altilium industria-repono systemata (BESS)

1 200-1 500 V DC pilae tormenta usque ad 2.5 MWH; L A rating protegit se eculeo dum 25 kA Icu tractat plenam altilium brevis currentis spatium.

4.150 kW-400 kW DC statio celeriter incurrens

Tuetur 1 000-1 500 V DC bus inter acervum rectificatorem et dispensatorem; fuse isolator concedit tutum receptum angustias per sustentationem sine clausis totam patinam ripam.

5.PV + repositione EV canti micantes

Dual-usus in eisdem 1 500 V bus: unus fuse isolator per PV chorda input alterum per eculeum pugnae simplificantem parcit et logistics.

6.Desert vel volans P. plantis

-50 °C ad XC °C operandi range et IP20 digitus-tutus terminales sustinere dura velit ambitus vel summus humiditas; 85 mm elementum fuse altiorem dat I²t per longum currit funem.

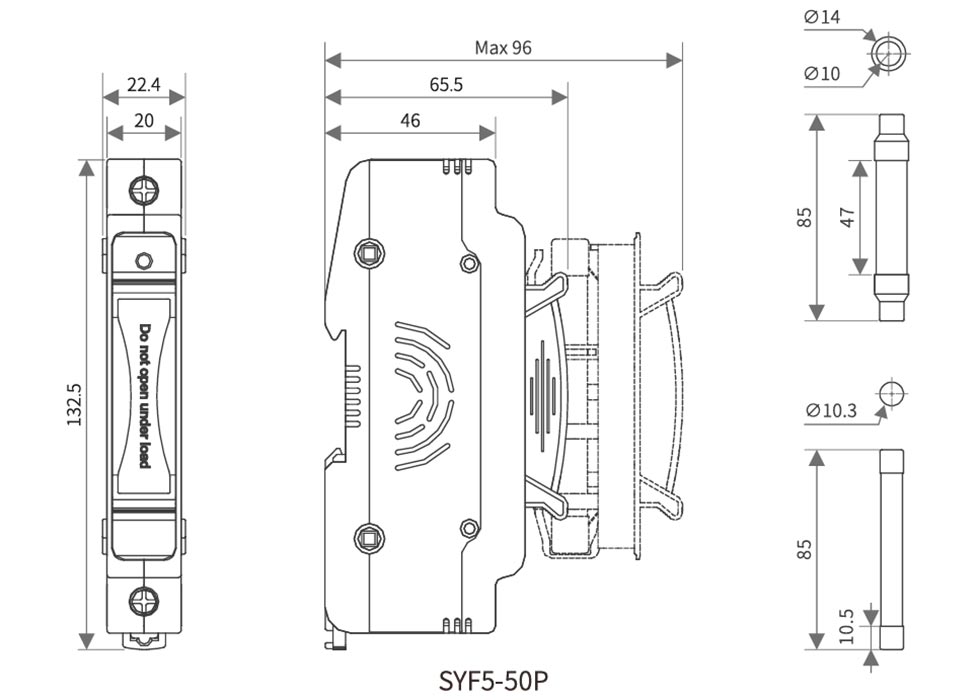

Aspectus et instruitur Dimensiones

DC 1500V Fuse Holder

DC Wiring Diagram

DC 1500V Fuse Holder

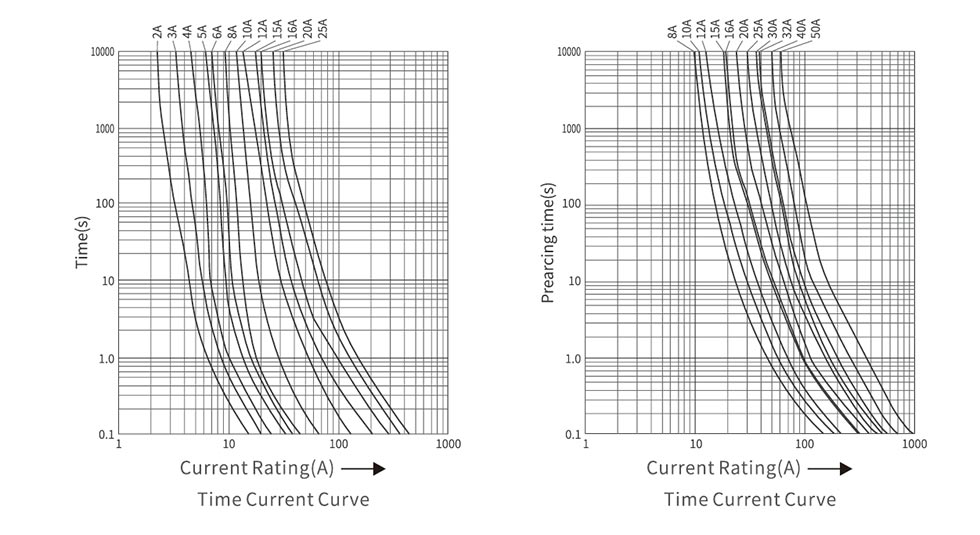

Fuse core size (mm)	Ratum est vena (A)	Ratum intentione (V)	Virtus damnum		Joule integralis
			Virtus damnum		Joule integralis
			0.7In (W)	1.01n (W)	Arcus frontis joule integralis P't(A²s)	Totalis meltingjoule integralis I²t (A²s)
			0.7In (W)	1.01n (W)	Arcus frontis joule integralis P't(A²s)	Totalis meltingjoule integralis I²t (A²s)
10.3x38	2	1000	0.8	1.72	2	3.3
10.3x38	3	1000	0.96	1.77	3	11
10.3x38	4	1000	1.1	1.86	5	27
10.3x38	5	1000	1.15	1.95	7	46
10.3x38	6	1000	1.24	2.08	12	89
10.3x38	8	1000	1.32	2.25	7	31
10.3x38	10	1000	1.41	2.39	9	68
10.3x38	12	1000	1.49	2.64	17	136
10.3x38	15	1000	1.54	2.91	28	215
10.3x38	16	1000	1.58	2.97	32	255
10.3x38	20	1000	1.87	3.52	50	392
10.3×38	25	1000	2.25	4.22	66	508
10.3x38	30	1000	2.35	4.41	106	821
10.3x38	32	1000	2.4	4.5	125	976
10.3×85	2	1500	1.7	3.2	4	8
10.3x85	3	1500	1.77	3.32	6	11
10.3×85	4	1500	1.69	3.19	8	14
10.3×85	5	1500	1.71	3.22	11	22
10.3×85	6	1500	1.73	3.25	15	30
10.3×85	8	1500	1.79	3.36	9	35
10.3×85	10	1500	1.99	3.74	10	98
10.3×85	12	1500	2.28	4.29	12	120
10.3x85	15	1500	2.63	4.95	14	170
10.3×85	16	1500	2.69	5.06	16	190
10.3×85	20	1500	3	5.65	34	400
10.3×85	25	1500	4.11	7.7	80	600
10.3×85	30	1500	4.57	8.6	90	720
14x85	32	1500	4.72	8.85	95	730
14×85	40	1500	6.63	12.5	125	800
14x85	50	1500	7.25	13.65	155	920
