DC 1000V Fuse Holder

SYF5-DC 1000V Fuse Holder e Soutya certam tutelam cum CE certificatione praebet. Contactus nos hodie pro quotation competitive!, quod praebetur ex fabrica Zhejiang Soutya Sinarum Novae Energy LLC, 1000 V DC, 2-32 praesidium cum XX kA fractionis capacitatis ad cistae solaris componendi.
Key Features
Luce indicium, fuse filum statum plane cognosce.
Manubrium aperi, sursum trahi potest, filum fusum facilius reponens.
Rivet plus ultrasonic glutino solidiore, wiring non scinditur.
Applicatio in PV coniunctarum capsa.

Mitte Inquisitionem

depictio producti

SYF5-3DC 1000V Fuse Holder e Soutya certam tutelam cum CE certificatione praebet. Contactus nos hodie pro sententia competitive! Zhejiang Soutya New Energy LLC est 1000 V DC, 2-32 A, 20 kA fabrica fractionis pro 3-15kW residentialibus PV . junctura arca .

Proprium

Series fusae testarum SYF5 facta est ex materia liquefactionis altae punctum PA66, quod est tutius et certius.
Core fusibile est variabilis liquefactio crucis-sectionis ex argento puro scheda facta summus fortitudo fictilem in tubo liquescens encapsulated. Exustio tubus chemicus tractatus summus puritatis vicus arena repletus et speciali tractata oeconomiae ut arcus media exstinguentis. Duo fines confla are firmiter ad finem tiaris macula glutino.

Application missiones

1.Residential patulis PV (3-15 kW)

Congruit 1000 V DC chordarum pixides pro uno-phase 5-10 kW vel trium-phase 10-15 kW systemata; 10.3 × 38 mm nexus fuse compositus 6-25 A filo fuses communes.

2.Small-carport & SOLARIUM rhoncus solaris

1000 V rating operit 2-4 chordarum modulorum 450 W; pacto 1P isolator salvet space in plastic IP65 clausuras sub modulis inclusi.

3.Household hybrid inverter-altilium circuitus

Isolates 48 V/51.2 V altilium acervi extiterunt ad 600-800 V DC bus intus 5-10 kW unitates hybridas; 20 KA Fractis ansis altilium brevibus culpis.

4.Domestic EV AC acetabula (7-11 kW)

Cum dextrariis internis 800 V DC PFC bus utuntur, SYF5-32P sustentationem praebet solitudo ante dc ligamine capacitor.

5. Low-power dc lucendi / hortus micro-grids

Protegit 380 V/750 V Dc hortis vel vicis lucis, quae a parvis PV polis aluntur; PA66 habitationi resistit -40 °C ad +90 °C.

Technical Parameter

Exemplar	SYF5-32P
Numerus polorum	1P
Secundum vexillum	IEC60269-1 IEC60269-6


Rated voltage Ue VDC operating	1000VDC
Rated current in A	2-32A
KA facultatem fractionis	20 kA
Praesidium campester	IP20
Wiring Mm²	1-10mm²
Operans temperatus range	-40℃~+90℃

altitudo	≤2000m
Relativum humiditas	+20℃, ≤90% +30℃, ≤80% +40℃, ≤70%

Installation Opera	Non significantes tremor et inpulsa

Institutionem Categoriae	Classis III

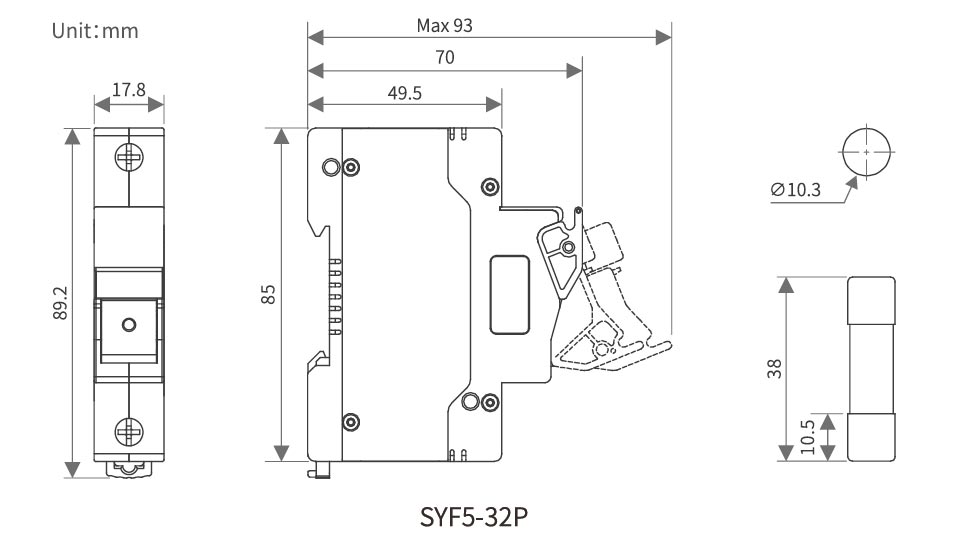

Aspectus et instruitur Dimensiones

DC 1000V Fuse Holder

DC Wiring Diagram

DC 1000V Fuse Holder

Fuse core size (mm)	Ratum est vena (A)	Ratum intentione (V)	Virtus damnum		Joule integralis
			Virtus damnum		Joule integralis
			0.7In(W)	1.01n (W)	Arcus frontis joule integralis P't(A²s)	Totalis meltingjoule integralis I²t (A²s)
			0.7In(W)	1.01n (W)	Arcus frontis joule integralis P't(A²s)	Totalis meltingjoule integralis I²t (A²s)
10.3x38	2	1000	0.8	1.72	2	3.3
10.3x38	3	1000	0.96	1.77	3	11
10.3x38	4	1000	1.1	1.86	5	27
10.3x38	5	1000	1.15	1.95	7	46
10.3x38	6	1000	1.24	2.08	12	89
10.3x38	8	1000	1.32	2.25	7	31
10.3x38	10	1000	1.41	2.39	9	68
10.3x38	12	1000	1.49	2.64	17	136
10.3x38	15	1000	1.54	2.91	28	215
10.3x38	16	1000	1.58	2.97	32	255
10.3x38	20	1000	1.87	3.52	50	392
10.3×38	25	1000	2.25	4.22	66	508
10.3x38	30	1000	2.35	4.41	106	821
10.3x38	32	1000	2.4	4.5	125	976
10.3×85	2	1500	1.7	3.2	4	8
10.3x85	3	1500	1.77	3.32	6	11
10.3×85	4	1500	1.69	3.19	8	14
10.3×85	5	1500	1.71	3.22	11	22
10.3×85	6	1500	1.73	3.25	15	30
10.3×85	8	1500	1.79	3.36	9	35
10.3×85	10	1500	1.99	3.74	10	98
10.3×85	12	1500	2.28	4.29	12	120
10.3x85	15	1500	2.63	4.95	14	170
10.3×85	16	1500	2.69	5.06	16	190
10.3×85	20	1500	3	5.65	34	400
10.3×85	25	1500	4.11	7.7	80	600
10.3×85	30	1500	4.57	8.6	90	720
14x85	32	1500	4.72	8.85	95	730
14×85	40	1500	6.63	12.5	125	800
14x85	50	1500	7.25	13.65	155	920
